Building a Custom Picker with the Sayduck API

  • Greg Colesnic
  • 2 days ago
  • 4 min read

Updated: 3 minutes ago

In today’s e-commerce landscape, static images no longer meet customer expectations. Shoppers want to examine products closely, explore details, and feel confident in what they are buying. The Sayduck 3D Viewer delivers exactly that by acting as a digital twin of your physical product. This dynamic visual experience allows colors, materials, and sizes to update in real time. But visualization alone is not enough. True engagement happens when customers are given control.


Custom Picker
Custom Picker

The Power of Choice


Imagine walking into a car dealership. You don't just want to look at the car; you want to see it in red, with leather seats, or with sport rims. In a digital environment, you need an interface to make those changes happen instantly as the user interacts.


We call this interface the Picker.


Think of the Picker as the remote control for your 3D Viewer. It is the bridge between your customer's desire and the digital product. When a user picks "Blue" on your menu, the Picker sends a signal to the Viewer, which instantly updates the model to show the Blue fabric, or any requested Configuration or Variant change.


The Default Picker vs. The Custom Picker


At Sayduck, we believe in making things easy. That’s why every 3D Viewer comes with a default HTML picker. It generates automatically based on your product data, creating a functional, user-friendly menu with zero design work required, and is there for every product, allowing you to fully engage with the product.



However, one size does not always fit all. Many brands require a user interface that seamless blends with their specific identity. Whether you want a minimalist aesthetic, a unique mobile layout, or specific interaction logic, the Sayduck API allows you to build it.




Why Create a Custom Picker?


By bypassing the default menu and building a custom interface, you unlock three key advantages:


  1. Seamless Brand Identity: Ensure the configurator looks like your website, not a plugin. Use your exact colors, fonts, and button styles.

  2. Unique Interactions: Move beyond standard buttons. Build animated dropdowns, visual grids, or step-by-step wizards.

  3. Curated Experiences: Instead of showing every single option at once, you can guide the user through specific "Variant" presets (like "Summer Edition" vs. "Winter Edition").


Understanding the Logic


Building a custom picker follows a standard "recipe." Regardless of the design complexity, the underlying code structure remains the same.


Step 1: The Minimal Embed

Before writing any code, you need the viewer on your page. This is the minimal Sayduck Viewer embed structure. All custom pickers and UI extensions build on top of this.


<div style="min-width:300px;width:100%;height:450px;">
  <sayduck-viewer
    product="3f36f160-bd6d-013e-561e-5aa155b385e1"
    mode="variants"
    background="white"
    hide-picker>
  </sayduck-viewer>
</div>

<script src="<https://viewer.sayduck.com>" type="module" async></script>

Key Element: hide-picker Notice the hide-picker attribute in the code above. This is crucial. It tells the viewer not to load the default Sayduck menu. Since you are building a custom one, you want the default UI disabled to prevent having two menus on the screen at the same time.

Note: Change mode="variants" to mode="configurator" if you are using a Configurator product.


Step 2: The API Lifecycle

To control the viewer, your code must wait until the viewer is fully loaded and ready to receive commands. We do this by listening for the sayduck.api-ready event.


window.addEventListener('sayduck.api-ready', (event) => {
  const api = event.detail.instance;
  // Your custom picker logic goes here
});

Step 3: Data Retrieval & Action

Once the API is ready, the logic flow is simple:

  1. Get Data: Ask the API for available options.

  2. Display: Create HTML buttons for those options.

Action: When a button is clicked, send the update command to the API.


Code Example 1: Variants


For Variants, the goal is to fetch a list of all existing variants (e.g., different color options for the same product) and swap between them.


Minimal Logic

Styling, animations, and layout are intentionally omitted in this snippet to demonstrate the core logic.

window.addEventListener('sayduck.api-ready', (e) => {
  const api = e.detail.instance;

  api.variants.getVariants().forEach(variant => {
    const button = document.createElement('button');
    button.textContent = variant.name;

    button.onclick = () => {
      api.variants.setActiveVariant(variant.uuid);
    };

    document.body.appendChild(button);
  });
});

Complete Styled Solution for Variant product


Here is a fully styled implementation of a Variant product using the logic above. It features a minimalistic design and a collapsible panel.



Code Example 2: Configurators


Configurators are more complex. You are not just listing products; you are listing Configurations (e.g., "Legs", "Fabric") and the Variants within them.


Minimal Logicfor Configurator

Styling, animations, and layout are intentionally omitted.

window.addEventListener('sayduck.api-ready', (e) => {
  const api = e.detail.instance;

  api.configurator.getConfigurations().forEach(config => {
    config.children.forEach(option => {
      const button = document.createElement('button');
      button.textContent = option.name;

      button.onclick = () => {
        api.configurator.setConfigurationValue(config, option);
      };

      document.body.appendChild(button);
    });
  });
});

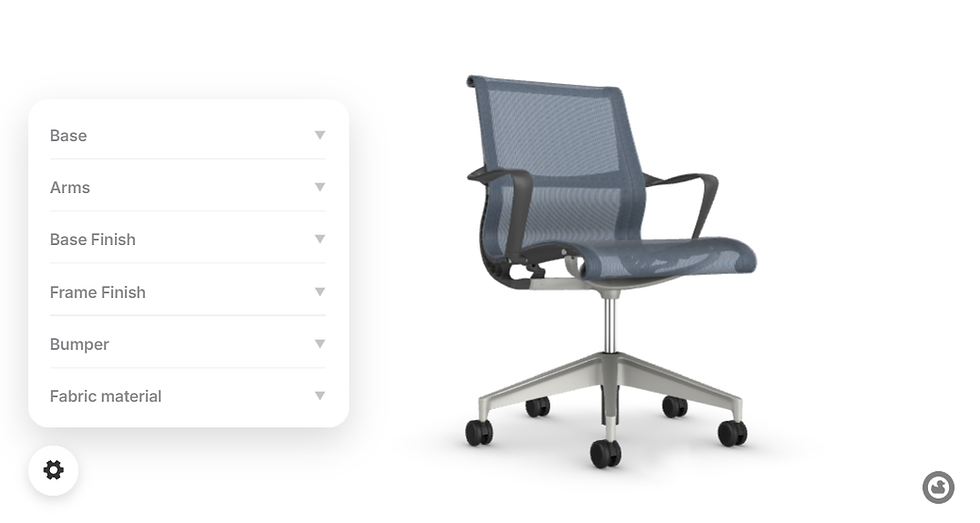

Complete Styled Solution


Here is a fully styled implementation of a Configurator picker.



Live Demo


See the Configurator code in action. The video below demonstrates the floating menu's elegant design, showing how it saves space while keeping tools accessible. As well you can check more tools at out documentation: https://help.sayduck.com/en/article/3d-viewer-api-documentation-1ftbxnx/



Conclusion


The Sayduck API empowers developers to break free from default constraints. Whether you need a simple variant switcher or a complex, multi-step configurator, the tools are in your hands to build a 3D experience that feels yours authentically.


Ready to build? Sign up for a Demo with us to get started, or try our platform today with a 14-day free trial!
